Home > Panel PCs > OMI6710A

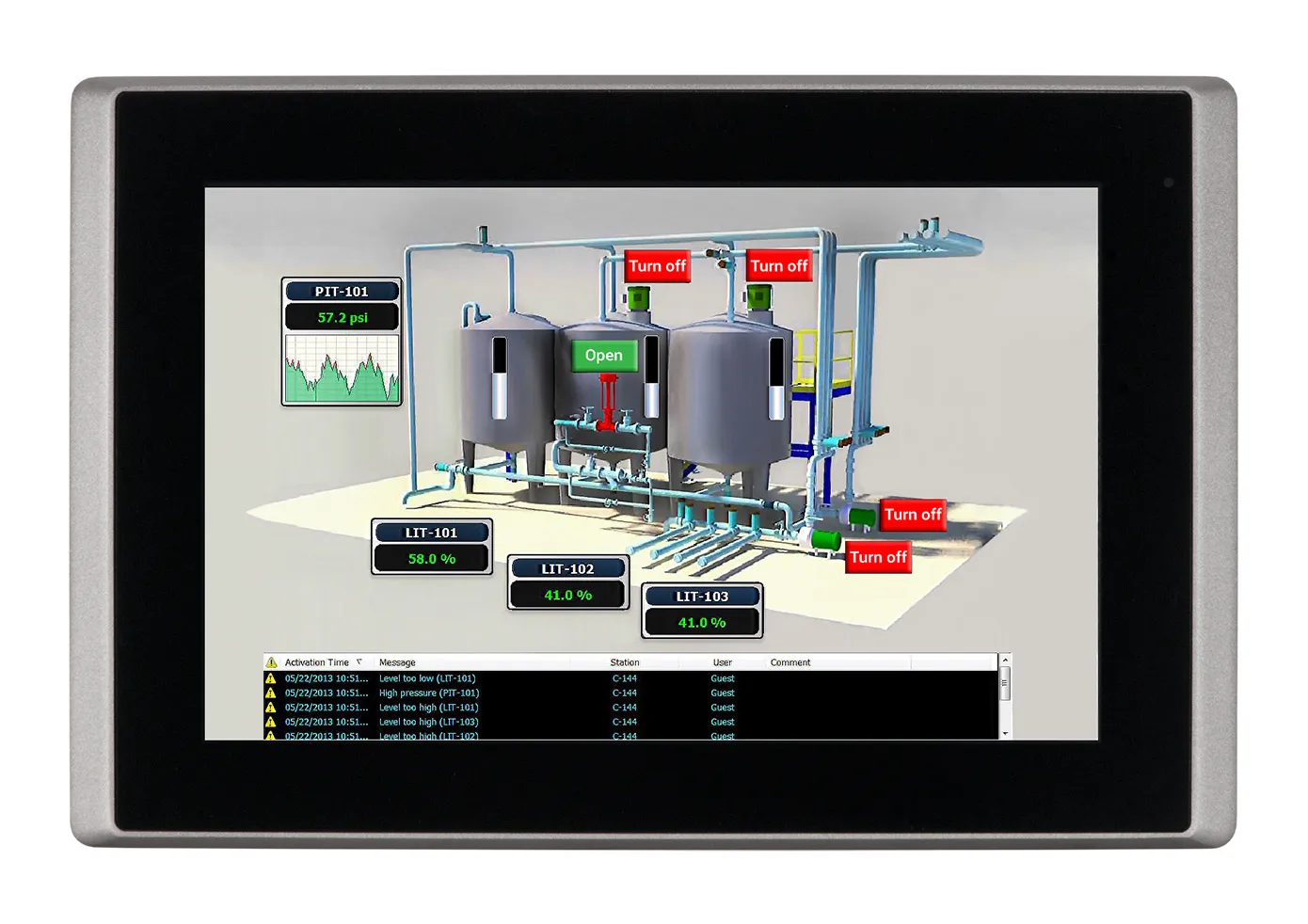

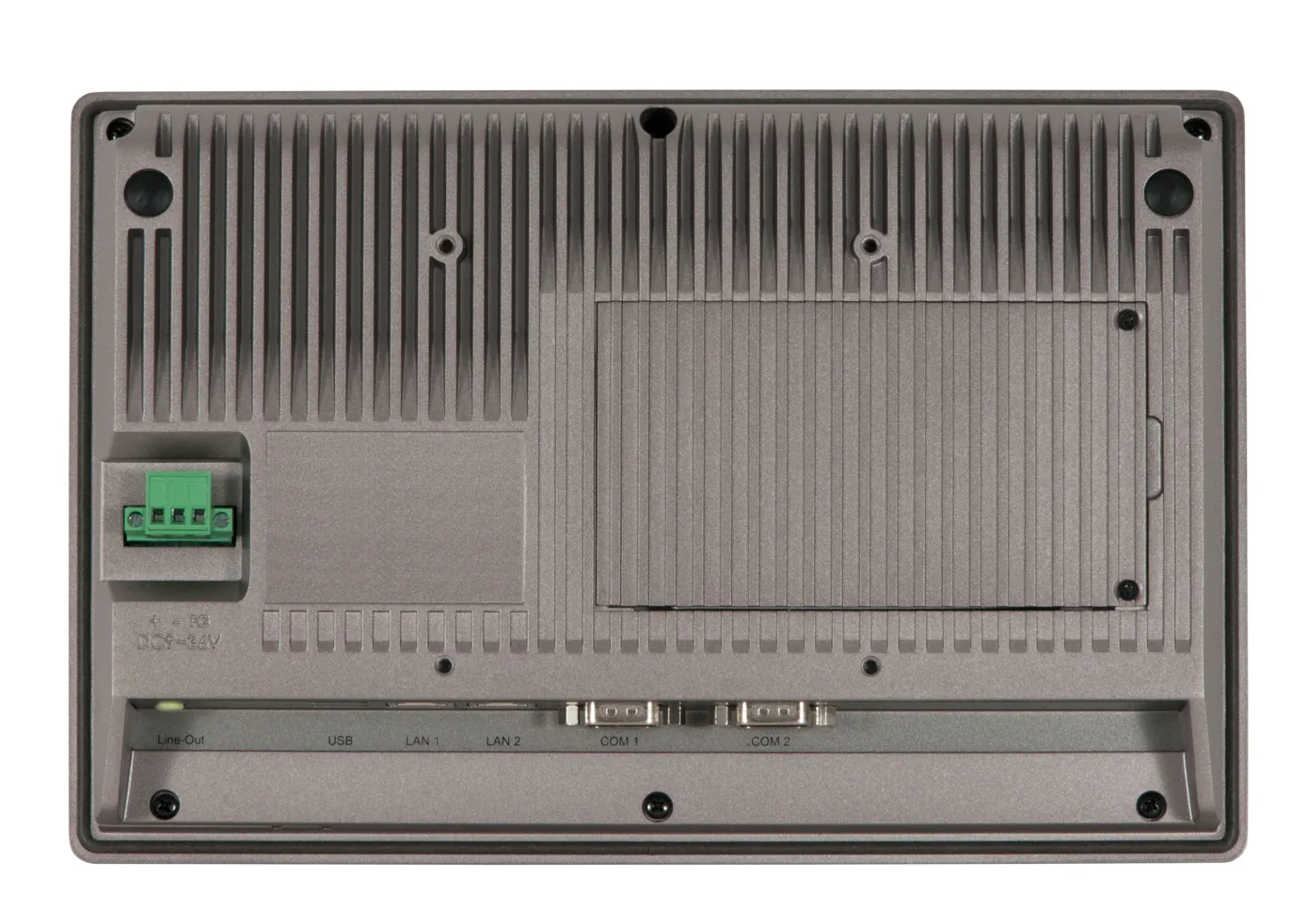

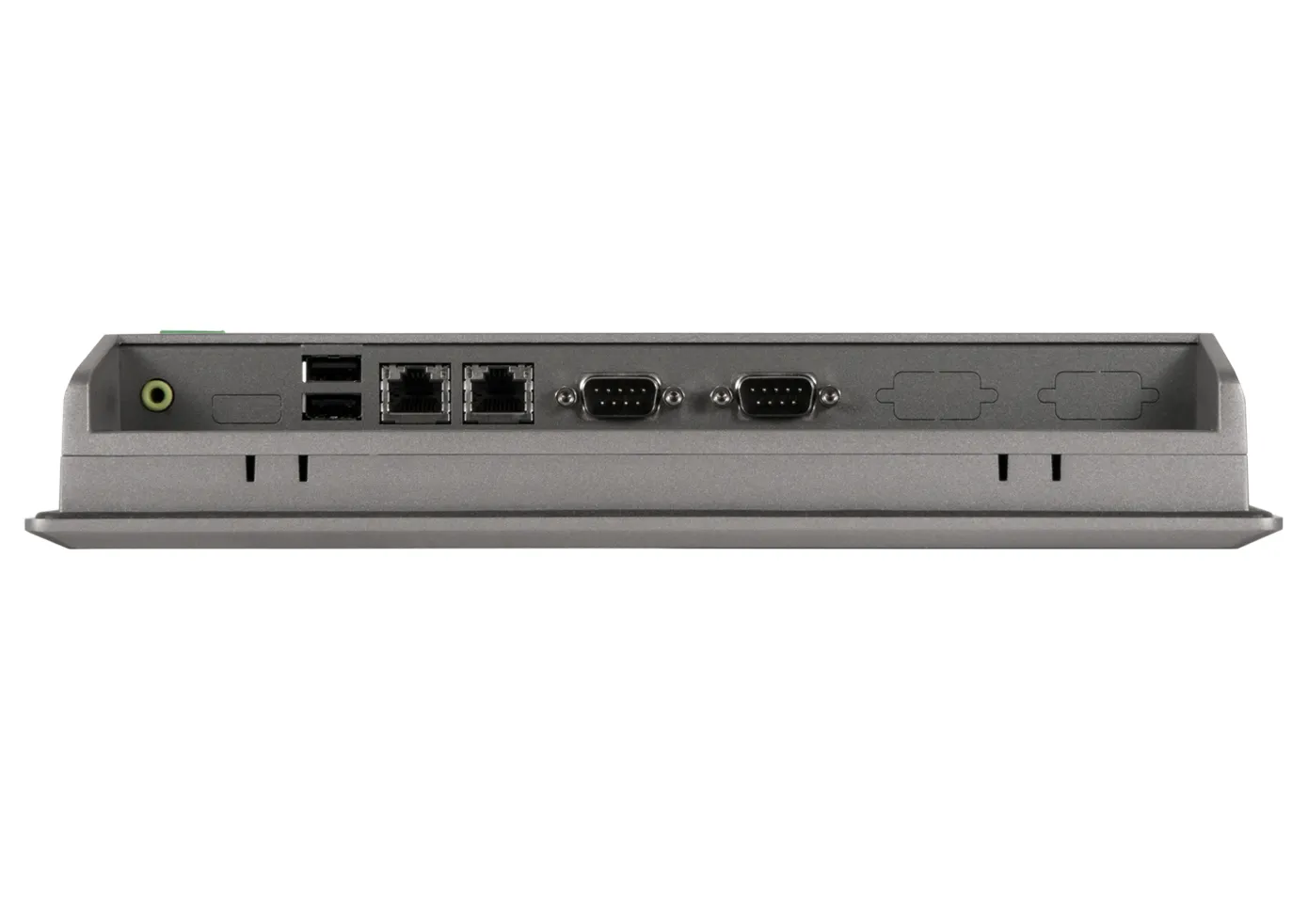

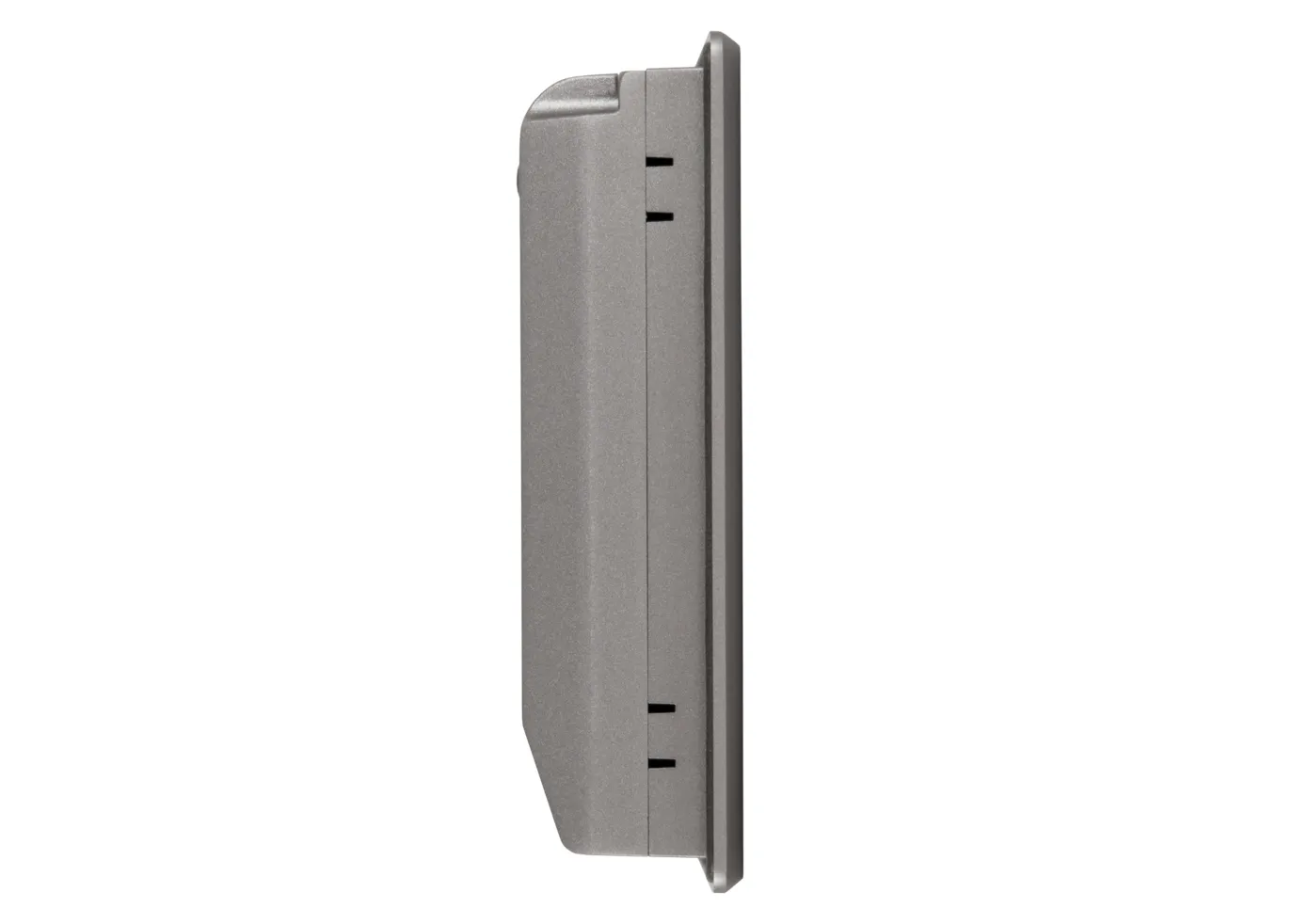

10" Fanless Panel PC

OMI6710A
$1,245.00
Build your Panel PC using our configuration tool to view price:
PC will leave factory within 2-3 business days unless otherwise specified
Quantity Discounts Available. Contact Sales for more details.
At a Glance:
  • 1280x800 Resolution
  • Intel Atom N2600 1.6GHz Dual Core Processor
  • 2GB RAM, 32GB MLC SSD
  • Microsoft Windows® Embedded Standard 7, 32-bit, upgrade available
  • Additional Memory and Wi-Fi Kit upgrades available
  • Aluminum Enclosure
  • Integrate with Indusoft's Web Studio®
Optional SCADA Software: Web Studio®
As part of our Panel PC Series, this model provides a high-quality option for applications requiring a Windows® Operating System. With Windows® Embedded Standard 7, this PC supports 3rd party and SCADA software like our Indusoft Web Studio®. Looking for more memory or faster processor? Check out the OMI6800 and OMI6900 Series in this same family.
UL CE RoHS FCC Class A NEMA 4x IP65
Configure your Panel PC
The base options are selected by default. Select the options to the get desired configuration.
Display
10" LCD Resistive Touch (5 wire) TFT $1,030
Processor (CPU)
Intel® Atom® Dual Core N2600, 1.6 GHz 531 CPU Benchmark   $0
System Memory (RAM)
2GB DDR3 $0
Storage
32 GB SSD SATA 2, MLC $65
64 GB SSD SATA 2, MLC $85
128 GB SSD SATA 2, MLC $120
256 GB SSD SATA 2, MLC $205
Operating System
Microsoft® Windows® Embedded Standard 7 32-bit (WS7P) $150
Microsoft® Windows® 7 Pro for Embedded 32-bit (FES 7 Pro) $200
Expansion Kit
None $0
Wifi $85
Default options highlighted in yellow
Current Configuration
Display
10" LCD
Processor (CPU)
Intel® Atom® Dual Core N2600, 1.6 GHz
System Memory (RAM)
2GB
Storage
32 GB SSD
Operating System
Microsoft® Windows® Embedded Standard 7 32-bit (WS7P)
Expansion Kit
None
Your Part Number:
Qty:
Total:
Specifications
Below you will find our datasheet with specifications and dimensions.
Download CAD Files
Data Sheet
Operating System


As a total solution to your industrial automation needs, we recommend Web Studio®, a powerful and intuitive HMI/SCADA software for Panel PCs. Web Studio® provides a media-rich operating environment that clearly communicates system conditions to operators. It also allows supervisors and engineers to view and modify data remotely.

Software Features

Web Studio® enables you to:
  • Create real-time applications that support animated graphic screens, trends, alarms, reports, and recipes
  • Utilize sophisticated security features for system protection
  • Utilize the Internet to remotely view multiple applications
  • Connect with more than 250 communication drivers for PLCs and controllers
  • Provide OPC (client & server) support

For more information about Indusoft Web Studio® and pricing, click here



Windows®-Compatible Options

The Windows® platform allows configuration with many Windows® - compatible applications, thus providing you with capabilities beyond proprietary HMI configuration software. Refer to the specific Industrial PC model fro the base operating System included and upgrade options available.


Windows® Embedded Standard 7

Supported Models : OMI6700 (32 bit only), OMI6800, BPC2310 and BPC2311

Windows® Embedded Standard 7 (WS7P) has a smaller footprint than full Windows® and is perfect for applications that require additional software such as the Windows® Office suite.
Included Apps:
  • Internet Explorer
  • MS Word Viewer
  • Adobe PDF Viewer
  • MS PowerPoint Viewer
  • MS Excel Viewer
  • Media Player


Windows® 7 Pro for Embedded Systems

Supported Models : OMI6700 (32 bit only), OMI6800, OMI6900 (64 bit only), PC2300, PC400, BPC2310 and BPC2311

Windows® 7 Pro for Embedded Systems (FES 7 Pro) is a full version of Windows® 7 Pro. This powerful operating system will run any program that will run on a PC, including in XP mode. All of the features and functionality that customers expect to find on their desktop PC are available in this version.
Included Apps:
  • Internet Explorer
  • MS Word Viewer
  • Adobe PDF Viewer
  • MS PowerPoint Viewer
  • MS Excel Viewer
  • Media Player


Microsoft Windows® 10 IoT Enterprise 2016 LTSB for Embedded Systems

Supported Models : OMI6800, OMI6900 (64 bit only), PC2300, BPC2310 and BPC2311

Microsoft Windows® 10 IoT Enterprise 2016 LTSB for Embedded Systems is a full Professional version of Windows® 10. This powerful operating system delivers enterprise manageability and security to IoT solutions. Additionally, all of the features and functionality that customers expect to find on their desktop PC are available in this version. The Long Term Servicing Branch (LTSB) version ensures long term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.
Included Apps:
  • Internet Explorer
  • MS Word Viewer
  • Adobe PDF Viewer
  • MS PowerPoint Viewer
  • MS Excel Viewer
  • Media Player


Microsoft Windows® 10 IoT Enterprise 2019 LTSC for Embedded Systems

Supported Models : OMI6800, OMI6900, PC1200, PC1300, PC2300, BPC2310 and BPC2311

Microsoft Windows® 10 IoT Enterprise 2019 LTSC for Embedded Systems is a full Professional version of Windows® 10. This powerful Operating System delivers enterprise manageability and security to IoT solutions. Additionally, all of the features and functionality that customers expect to find on their desktop PC are available in this version. The Long Term Servicing Channel (LTSC) version ensures long term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions. Choose from either the EPKEA (Embedded license, activation not required) or PKEA (recovery disk included, customer must complete Windows activation) version.
Included Apps:
  • Internet Explorer
  • MS Word Viewer
  • Adobe PDF Viewer
  • MS PowerPoint Viewer
  • MS Excel Viewer
  • Media Player
