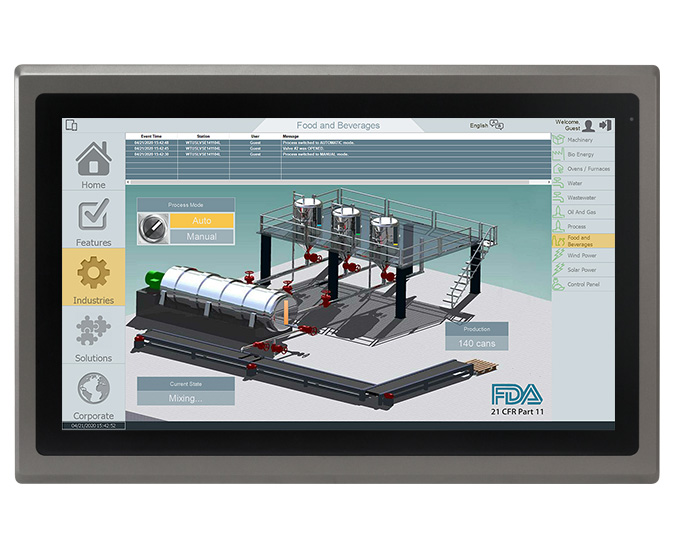

21" Fanless Panel PC

OMI6821B

As part of our Panel PC Series, this model provides a high-quality option for applications requiring a Windows® Operating System. With Windows® 10 IoT, this PC supports 3rd party and SCADA software like our Indusoft Web Studio®. Check out our Industrial PCs if you have higher specification requirements. Looking for more memory or faster processor? Check out the OMI6900 Series in this same family.
$2,255.00
Quantity Discounts Available. Contact Sales for more details.
Build your Panel PC using our configuration tool to view price:
At a Glance:
  • 1920x1080 Resolution
  • Intel® Pentium® N4200 1.1GHz Quad Core Processor
  • 8GB RAM, 64GB MLC SSD
  • Microsoft Windows® 10 IoT Ent Embedded 64-bit
  • Additional Memory and Wi-Fi Kit upgrades available
  • Integrate with AVEVA Edge 2020
FCC Class A CE RoHS NEMA4 IP66
Optional Software: AVEVA Edge 2020. Learn More
"I've bought [Maple Industrial Panel PCs] for the last 4 or 5 years and had no problems to date.  They seem rock solid. Recently I've bought a couple headless HMI's. Software is pretty easy to use and your knowledge base is good."
Chad Hoover
Owner/President

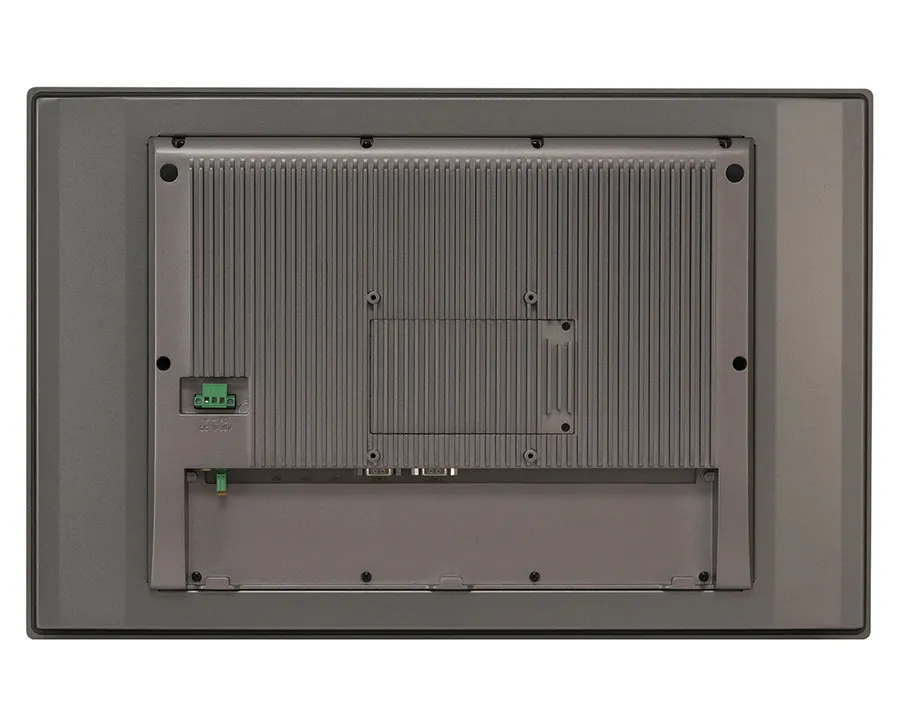

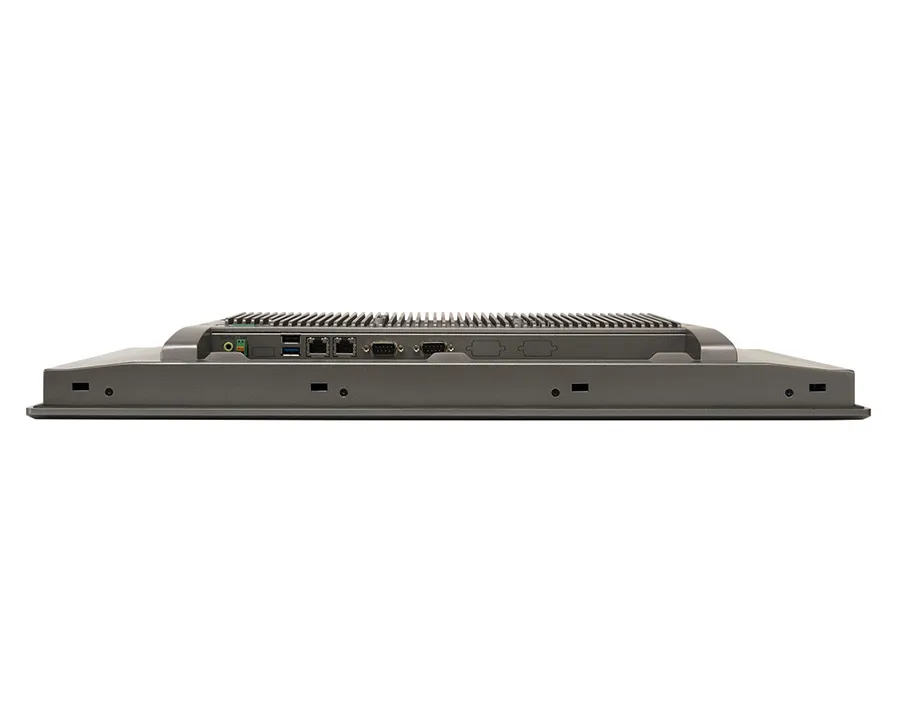

Terminal Connections
Configure your Panel PC
The base options are selected by default. Select the options to the get desired configuration.
Display
21" LCD Resistive Touch (5 wire) TFT $2,120
Processor (CPU)
Intel® Pentium® N4200 Quad-Core, 1.1 GHz 2308 CPU Benchmark   $0
System Memory (RAM)
4GB DDR3L $0
Storage
64 GB SSD SATA 2, MLC $85
128 GB SSD SATA 2, MLC $120
256 GB SSD SATA 2, MLC $205
512 GB SSD SATA 2, MLC $370
Operating System
Microsoft® Windows® 10 IoT Enterprise 2019 LTSC 64-bit (PKEA)       $50
Microsoft® Windows® 10 IoT Enterprise Embedded 2019 LTSC 64-bit (EPKEA)       $50
Expansion Kit
None $0
Wifi $85
Default options highlighted in yellow
Current Configuration
Display
21" LCD
Processor (CPU)
Intel® Pentium® N4200 Quad-Core, 1.1 GHz
System Memory (RAM)
4GB
Storage
64 GB SSD
Operating System
Microsoft® Windows® 10 IoT Enterprise 2019 LTSC 64-bit (PKEA)
Expansion Kit
None
Your Part Number:
Qty:
Total:
Operating System


As a total solution to your industrial automation needs, we recommend AVEVA Edge 2020, a powerful and intuitive HMI/SCADA software for Panel PCs. AVEVA Edge 2020 provides a media-rich operating environment that clearly communicates system conditions to operators. It also allows supervisors and engineers to view and modify data remotely.

Software Features

AVEVA Edge 2020 enables you to:
  • Create real-time applications that support animated graphic screens, trends, alarms, reports, and recipes
  • Utilize sophisticated security features for system protection
  • Utilize the Internet to remotely view multiple applications
  • Connect with more than 250 communication drivers for PLCs and controllers
  • Provide OPC (client & server) support

For more information about AVEVA Edge 2020 and pricing, click here



Windows®-Compatible Options

The Windows® platform allows configuration with many Windows® - compatible applications, thus providing you with capabilities beyond proprietary HMI configuration software. Refer to the specific Industrial PC model for the base operating System included and upgrade options available.


Microsoft Windows® 10 IoT Enterprise 2019 LTSC for Embedded Systems
Supported Models :OMI6800, OMI6900, PC1200, PC1300, PC2300, BPC2310 and BPC2311

PKEA also known as "Product Key Entry Activation"

The Product Key belongs to the end user and the Product Key sticker is attached to the PC. The end user must activate the OS by logging on to the Microsoft website with the PC and enter the Product Key.

Microsoft Windows® 10 IoT Enterprise 2019 LTSC for Embedded Systems is a full Professional version of Windows® 10. This powerful Operating System delivers enterprise manageability and security to IoT solutions. Additionally, all of the features and functionality that customers expect to find on their desktop PC are available in this version. The Long Term Servicing Channel (LTSC) version ensures long term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:
  • Internet Explorer
  • MS Word Viewer
  • Adobe PDF Viewer
  • MS PowerPoint Viewer
  • MS Excel Viewer
  • Media Player
Microsoft Windows® 10 IoT Enterprise Embedded 2019 LTSC
Supported Models : OMI6800, OMI6900, PC1200, PC1300, PC2300, BPC2310 and BPC2311

EPKEA also known as "Embedded Product Key Entry Activation"

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to Maple Systems.

Microsoft Windows® 10 IoT Enterprise Embedded 2019 LTSC is a full Professional version of Windows® 10. This powerful Operating System delivers enterprise manageability and security to IoT solutions. Additionally, all of the features and functionality that customers expect to find on their desktop PC are available in this version. The Long Term Servicing Channel (LTSC) version ensures long term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:
  • Internet Explorer
  • MS Word Viewer
  • Adobe PDF Viewer
  • MS PowerPoint Viewer
  • MS Excel Viewer
  • Media Player
Microsoft Windows® 10 IoT Enterprise 2016 LTSB for Embedded Systems -- by special request only, contact sales to place order.
Supported Models : OMI6800, OMI6900 (64 bit only), PC2300, BPC2310 and BPC2311

Microsoft Windows® 10 IoT Enterprise 2016 LTSB for Embedded Systems is a full Professional version of Windows® 10. This powerful operating system delivers enterprise manageability and security to IoT solutions. Additionally, all of the features and functionality that customers expect to find on their desktop PC are available in this version. The Long Term Servicing Branch (LTSB) version ensures long term stability that critical production systems require by updating only necessary operating system components, with significantly fewer update interruptions.

Included Apps:
  • Internet Explorer
  • MS Word Viewer
  • Adobe PDF Viewer
  • MS PowerPoint Viewer
  • MS Excel Viewer
  • Media Player
FES 7 Pro - For Embedded Systems Windows® 7 Pro
Supported Models : OMI6700 (32 bit only), OMI6800, OMI6900 (64 bit only), PC2300, PC400, BPC2310 and BPC2311

FES 7 Pro also known as "For Embedded Systems Windows® 7 Pro"

The Product Key belongs to the end user and the Product Key sticker is attached to the PC. The end user must activate the OS by logging on to the Microsoft website with the PC and enter the Product Key.

Windows® 7 Pro for Embedded Systems (FES 7 Pro) is a full version of Windows® 7 Pro. This powerful operating system will run any program that will run on a PC, including in XP mode. All of the features and functionality that customers expect to find on their desktop PC are available in this version.

Included Apps:
  • Internet Explorer
  • MS Word Viewer
  • Adobe PDF Viewer
  • MS PowerPoint Viewer
  • MS Excel Viewer
  • Media Player
Windows® Embedded Standard 7
Supported Models : OMI6700 (32 bit only), OMI6800, BPC2310 and BPC2311

WS7P also known as "Windows® Standard 7 Pro"

The Product Key is embedded in the PC and activated by Maple Systems. If the OS needs to be reinstalled, it must come back to the Maple Systems.

Windows® Embedded Standard 7 (WS7P) has a smaller footprint than full Windows® 7 and is perfect for applications that require additional software such as the Windows® Office suite.

Included Apps:
  • Internet Explorer
  • MS Word Viewer
  • Adobe PDF Viewer
  • MS PowerPoint Viewer
  • MS Excel Viewer
  • Media Player
Documentation & Resources
Here's the list of documents and resources
Need additional support?
Contact Us
Certifications
FCC Class A CE RoHS NEMA4 IP66

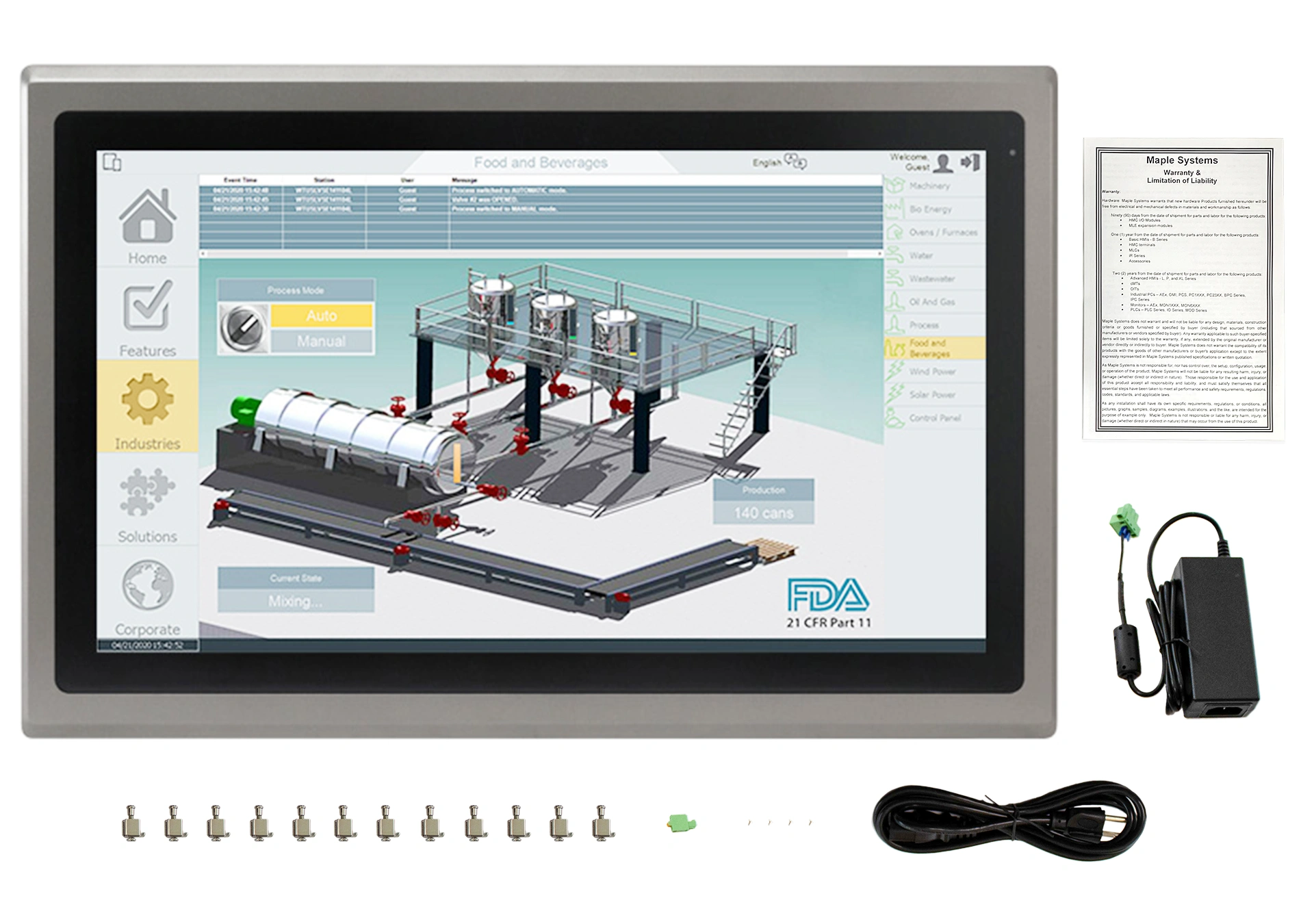

In the Product Box
  • OMI6821B Industrial Panel PC
  • DC Power Connector (3 pin terminal block)
  • DC Power adapter with cord
  • Mounting Clamp Kit
  • Support CD
  • Windows Recovery CD (for non-embedded operating systems only)
