Water & Wastewater

Water and wastewater companies rely on Maple Systems products to help ensure uninterrupted production of critical resources. Whether you are designing for a new application or updating an existing one, Maple Systems offers industrial automation and networking solutions that provide the connectivity, monitoring and control required to get the job done. If your challenges are: water quality, water scarcity, water cost, and/or the desire to minimize your water footprint, our products can help you address these head on.

Here are just a few of the many Water & Wastewater OEMs, System Integrators, and Municipalities that use our products:

Kemco Logo

Kemco buys our 10.1" Smart HMI with IIoT functionality, and with over 50 years of experience in designing and delivering water and wastewater treatment projects, Kemco has developed solutions that allow them to work across different markets.

Canadian Water Technologies Logo

Canadian Water Technologies uses a variety of Maple HMIs, including our IIoT headless HMI in the manufacturing of high purity water treatment systems for the medical, commercial/industrial, food/beverage, and pharmaceutical industries using RO, nano-filtration, ultra-filtration, deionization, and other pre-treatment and polishing devices.

Orenco Logo

Orenco designs and sells affordable, sustainable wastewater treatment products for properties not served by conventional sewers and uses our 7" HMI on their TCOM Custom Control Panels for data logging, remote access, and control, all in real time.

Enaqua Logo

Enaqua provides water treatment solutions for municipal and industrial customers and buys our Industrial Box PCs and Aveva Edge software. Enaqua's dedication to provide the most innovative and best available technology has put Enaqua at the forefront of the water and wastewater industry.

SMI Snow Makers Logo

Also known as SMI, Snow Makers is a resource for cutting edge snowmaking equipment, master planning, construction and engineering services. Although they buy several different Maple HMIs, our 4.3" HMI is their go-to solution for creating and delivery energy-efficient, rugged, quality snowmaking equipment and solutions to our customers.

Sligo Systems logo

Sligo Systems uses our Class 1, Division 2, 7" HMI to help their customers monitor their facilities, creating a compliance centric infrastructure, all while increasing efficiency and eliminating the need for physical surveillance.

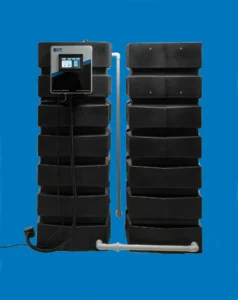

“The systems have been very reliable and they run so smoothly. The automated processes work like a charm and the user interface we designed on the HMI is very intuitive and makes our systems look very appealing and professional.”
— Tucker Epp, Dir. of Marketing and Business Development, Epp Well Solutions


.

Pump Monitoring

With proper monitoring, you can save energy and reduce costs.

By trending pump efficiencies (inputs, outputs and power consumed), predictions can be made as to how long they will last and foresee when they will fail.

Our software solutions can graphically show trend data over long periods of time so you know when pumps are operating and make adjustments that can save energy by operating pumps at off-peak times.

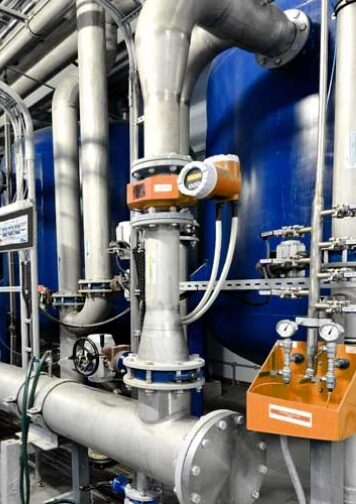

pump monitoring in water industry

Remote Monitoring

Monitor pressures and flow rates that can suddenly change.

EBPro, our free HMI configuration software, and Maple Systems hardware provide continuous monitoring for unmanned pump stations and treatment stations via remote connections that allow users to access data on a smart device, without leaving their vehicle. Remote monitoring keeps city workers efficient, allowing them to send information to a central facility to monitor tank levels, oxygen levels, flow rates and alarms.

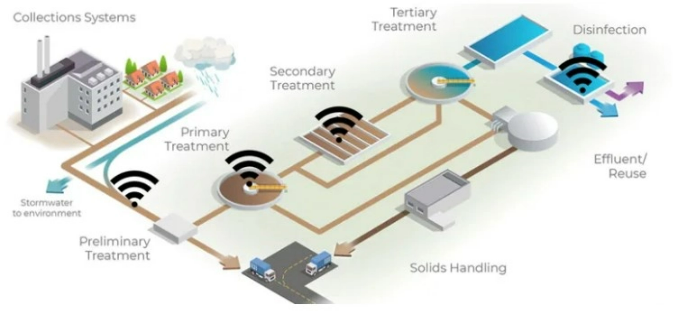

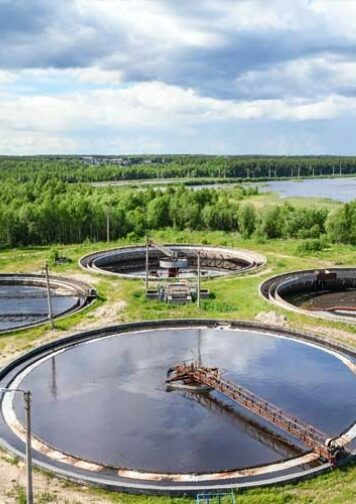

water industry remote monitoring

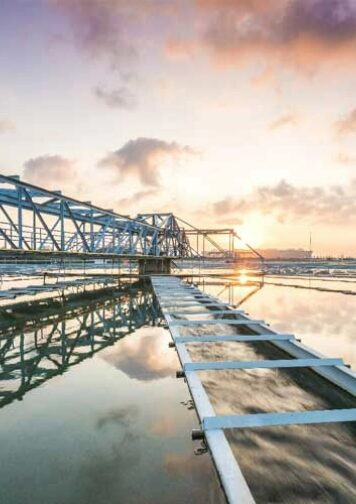

Traceability

EPA regulatory data collection and reporting are easily accomplished.

The security system built into EBPro has the ability to monitor user access, log maintenance records, and track changes to set points and adjustments.

Having the knowledge and assurance that everyone involved has done what they were supposed to do will allow you to focus on the more important issues such as improving operations and product quality.

FDA compliant screening technology

.

Energy efficient lower total cost HMI
Lower Total Cost

Hundreds of miles/kilometers of pipes and underground distribution systems can be a lot to manage. Reduce the headache and let Maple Systems products simplify the task. Reliable solutions, remote flexibility and decreased costs are all provided by real-time information applications created with our EBPro Configuration Software.


.

Remote Access & the IIoT

Maple Systems can serve as your guide, making it an easy process to join the next evolution of automated control. Maple Systems HMIs, Gateways, and Industrial PCs are your gateway to the IIoT. Our products are an access point enabling operating equipment in the field or on the plant floor to connect to information technologies of the World Wide Web, databases, smart phones, analytic software, and more. Achieve better access to invaluable data and open up a world of possibilities for your business.

  • Email notifications for alarms and data backups
  • Remote access/monitoring/control functionality
  • Data logging for more informed decision making
  • Enhanced network security thanks to physically separate dual Ethernet ports
Remote access IIoT illustration

Connectivity

Connect the Hardware using a Protocol you Know

Free EBPro Programming Software provides easy integration with built-in drivers for over 300 PLCs, including drivers for Allen-Bradley, Siemens, Emerson, Omron, and Panasonic.

Leading PLC manufacturer logos

Industrial Panel PCs

.

Capacitive, High Brightness, Stainless Steel, and Wi-Fi options to choose from

To effectively and efficiently monitor packaging operations, the need for auto adjustments and timely, accurate data is critical. You need reliable, current, and historical information to make critical business decisions. As safety and environmental concerns continue to increase, the ability to remotely monitor your facilities and equipment and quickly make adjustments becomes increasingly important.

High Brightness Industrial Panel PC
Trio of our High Brightness Industrial Panel PCs

We have hundreds of configuration options to choose from:

  • 11 Screen Sizes, 7”-21.5”
  • 6 Intel CPUs
  • 4-32GB Memory
  • 32GB -512GB SSD
  • Optional Wi-Fi Expansion Kit
  • Microsoft Windows OS

If you don't need a display, we offer Industrial Box PCs. Customize your configuration, including Wi-Fi and Raid support options available.

For over 20 years, we have proudly partnered with Indusoft Web Studio, now Aveva, as our SCADA software provider. Aveva's powerful development tools enable you to create supervisory applications that operate on multiple operating system platforms. Create your project using features such as animated screens, alarms, trends, scripting, recipes & reports, and schedule tasks. This software offers the power to create exactly what you want, the way you want it, including 21 CFR Part 11 compliant.

Industrial touchscren smart IIoT HMIs

Maximize production | Enable manage-by-exceptions | Avoid unnecessary equipment shut down Gather data cost effectively | Prevent costly equipment repairs | Streamline ticketing and invoicing

Touchscreen HMIs

.

Wi-Fi & Class I, Division 2 Options

Our easy to use HMIs and Free Configuration Software give you the power and flexibility to tackle your next automation project. With display sizes ranging from 4.3" to 15", diverse options and features such as Wi-Fi, Dual Ethernet, Remote Access, and Class 1, Div 2. Our user-friendly HMI software allows you to pick and place graphical objects, assign communication (PLC) drivers easily, and access data from these Advanced Human Machine Interfaces.

HMI PLC combo units

These controllers with displays range in size from 4.3”, 7.0”, to 10.2”. I/O modules offer digital inputs and outputs, with analog I/O as well. Our HMI+PLC models are ideal for harsh locations with their Class I, Div 2 rating.

HMI + PLCs

.

Class I, Division 2

Our HMC series combines a Touch Screen HMI and PLC all in one unit. Utilized worldwide in diverse applications, our HMI PLCs lower costs, save space, and feature options including: Serial and Ethernet communication, support for Class I, Division 2 installations, and numerous I/O configurations.

HMI PLCs provide an affordable combination of display and control in a single package, programmed using our MAPware7000 software. MAPware7000 allows you to have web server functionality, data logging, recipes, graphs, alarms, trending, create objects with multiple tasks, and more.

You can use serial and ethernet communication to remote access via Modbus to expansion I/O, making these controls capable of any size application. Native Ladder/IEC 61131-3. With the only 4.3” and 7" option for Class 1, Div 2, it's great for small spaces where there is no room for a PLC.

Smart IIoT HMIs

.

MQTT, OPC UA, Sparkplug B, Ignition, SQL Databases

These loT products are designed to meet the expanding need for new ways to connect to equipment, while still preserving the core function of a fixed operator terminal. Operators are free to remotely monitor and control equipment with any smart/mobile device, from anywhere in the world.

Industrial Smart HMI with IIoT Features
Diagram of HMI data routing for Industrial Internet of Things

Like water, data is an extremely valuable resource that creates immense opportunities for growth and increased profitability. For water and wastewater companies, the challenge is to efficiently collect, analyze, and visualize masses of data from SCADA systems, terminals, facilities and safety systems. This data, in turn, supports operational insight and business value—all while improving return on investment.

Alphanumeric OITs

.

Extended Temperature

Maple Systems Alphanumeric OITs are powerful, affordable operator interface terminals. Our units offer best-in-class features including 2 and 4-line LCD and VFD Displays,16 and 24-key keypads, unique user-definable keypads, and slide-in legends. With the ability to communicate with more than 100 brands of PLCs such as Emerson, GE, Koyo, Mitsubishi, Schneider, Control Microsystems ScadaPack series, and many more. Their motion controllers, temperature controllers, and embedded microcontrollers allow you to easily create the perfect operator interface terminal for your application.

alphanumeric OITs

.

.

Supervisory Control and Data Acquisition (SCADA)

Connect the Hardware using a Protocol you Know

Maple Systems offers all the components you need to create your own unique level of supervisory data acquisition and control, from the simplest stand-alone machine to sophisticated multi-device networked production line(s), all the way to enterprise-level operations and IIoT functionalities leveraging cloud connectivity.

Log data from your devices to aid in reporting, to gain efficiencies, reduce downtime, and plan for routine maintenance. Add additional IIoT functionality like MQTT, OPC UA, Ignition, SQL database integration, and more. Our products can help you standardize communications between devices, gluing different systems together for one source to your SCADA. No need to redesign your entire application.

Keep the components that are already working for you, just add Maple Systems components to grow your abilities to supervise, control, and acquire data.

To learn more about how our products work together to create scalable SCADA solutions, visit our SCADA solutions page.
